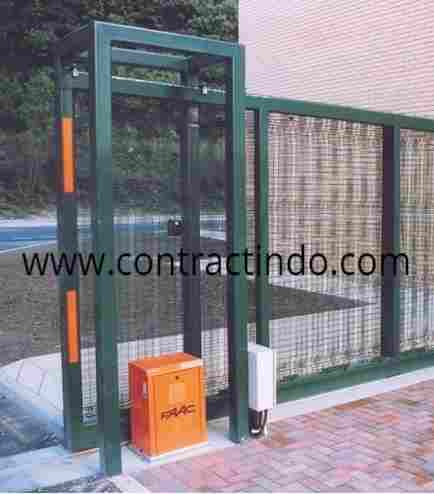

FAAC Ex Italy - 884 3-PHASE Sliding Gate Operator
Rp. 0
Call For Price
Stok :
Tersedia
Belanja Nyaman, Hati Puas. Produk tidak sesuai? Tukar saja, ongkos kirim kami tanggung!
Technical specification
| Duty |
Industrial |
| Power Supply |
400 V 3phase |
| Power Consumption |
850W |
| Max Gate Weight |
3,500 kg |
| Max Speed |
10 m/min |
| Use Frequency |
50% (over 2,000 kgs) |
| Special Considerations |
Control board requires CAT3 safety edges to be used. |
Show Varians
| Model Variant | Part Number | Application | Use Frequency | Limit Switch Type | Power Supply | Maximum Leaf Weight | Gate Obstacle Detection |
|---|---|---|---|---|---|---|---|
| 884 MC 3 PHASE | 109885 |
Industrial |
50.00% | Inductive | 3Phase | 3500 | No encoder |
Key features
- Ideal for large industrial gates with intensive use
- Self breaking motor guarantees reduced stop spaces and keeps the system mechanically locked when the motor is not in operation
- In the event of a power cut, the lever-operated release device makes it possible to open and close the gate manually
- Twin-disk clutch in oil-bath
- Base with levelling screws
- Steel housing protected by cataphoresis treatment and polyester paint
Product details
400V gearmotor for sliding gates with max weight of 3,500 kg
